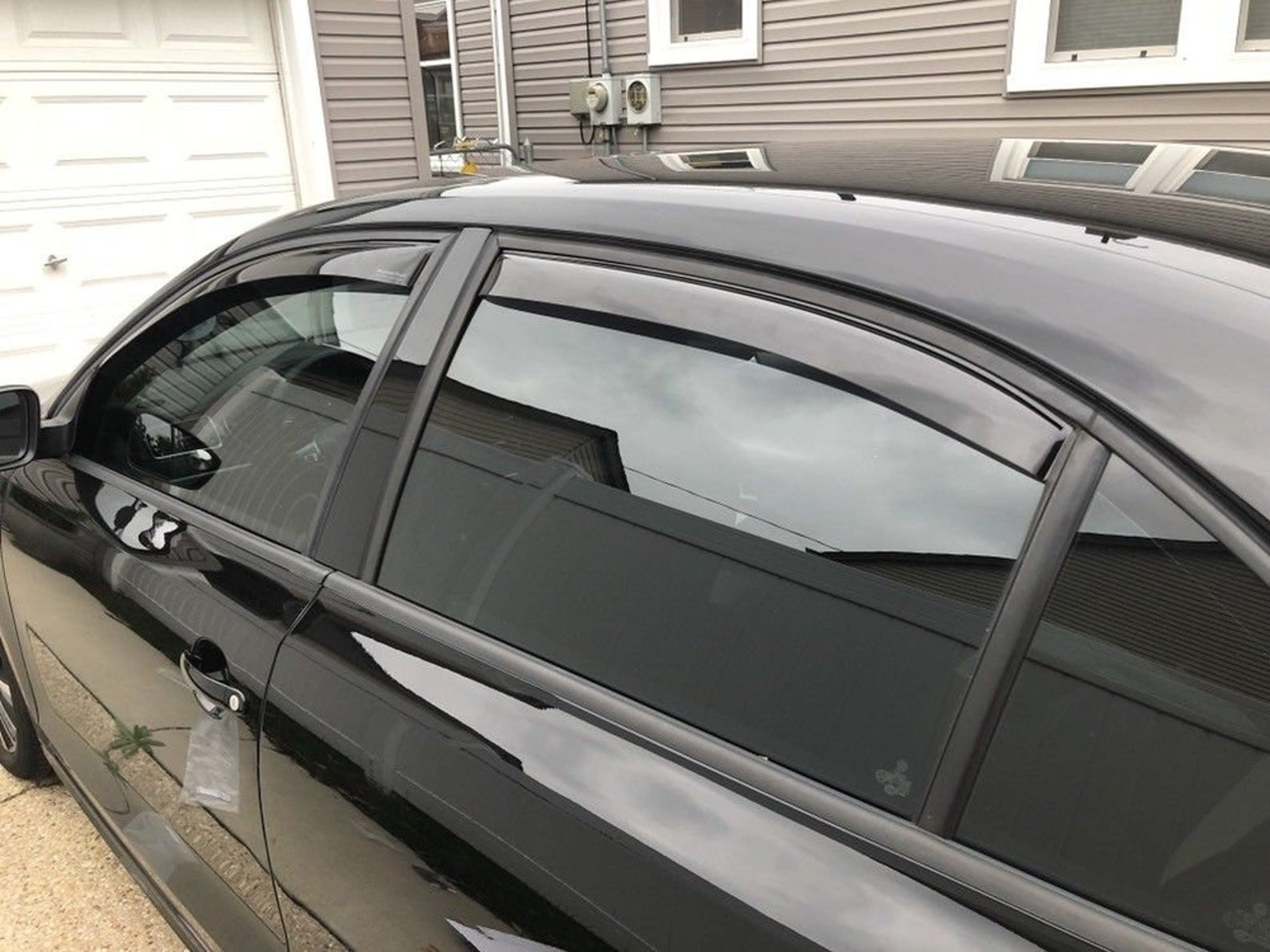

Opening and closing the Toyota Camry windows

    Operating principle and operating instructions for the Toyota Camry windows system. Safety rules when using you have to know.

    Power windows

    Opening and closing procedures

    The power windows can be opened and closed using the switches. Operating the switch moves the windows as follows:

    1. Closing
    2. One-touch closing*
    3. Opening
    4. One-touch opening*

    *: To stop the window partway, operate the switch in the opposite direction.

    Window lock switch

    Press the switch to lock the passenger window switches. Use this switch to prevent children from accidentally opening or closing a passenger window.

    The power windows can be operated when

    • Vehicles without a smart key system: The engine switch is in the “ON” position.
    • Vehicles with a smart key system: The engine switch is in IGNITION ON mode.

    Operating the power windows after turning the engine off

    • Vehicles without a smart key system
      The power windows can be operated for approximately 45 seconds even after the engine switch is turned to the “ACC” or “LOCK” position. They cannot, however, be operated once either front door is opened.
    • Vehicles with a smart key system
      The power windows can be operated for approximately 45 seconds even after the engine switch is turned to ACCESSORY mode or turned off. They cannot, however, be operated once either front door is opened.

    Jam protection function

    If an object becomes jammed between the window and the window frame while the window is closing, window movement is stopped and the window is opened slightly.

    Catch protection function

    If an object becomes caught between the door and window while the window is opening, window movement is stopped.

    When the window cannot be opened or closed

    When the jam protection function or catch protection function operates unusually and the door window cannot be opened or closed, perform the following operations with the power window switch of that door.

    • Vehicles without a smart key system:
      Stop the vehicle. With the engine switch in the “ON” position, within 4 seconds of the jam protection function or catch protection function activating, continuously operate the power window switch in the one-touch closing direction or one-touch opening direction so that the door window can be opened and closed.
    • Vehicles with a smart key system:
      Stop the vehicle. With the engine switch in IGNITION ON mode, within 4 seconds of the jam protection function or catch protection function activating, continuously operate the power window switch in the one-touch closing direction or one-touch opening direction so that the door window can be opened and closed.

    If the door window cannot be opened and closed even when performing the above operations, perform the following procedure for function initialization.

    1. Vehicles without a smart key system:
      Turn the engine switch to the “ON” position.
      Vehicles with a smart key system:
      Turn the engine switch to IGNITION ON mode.
    2. Pull and hold the power window switch in the one-touch closing direction and completely close the door window.
    3. Release the power window switch for a moment, resume pulling the switch in the one-touch closing direction, and hold it there for approximately 6 seconds or more.
    4. Press and hold the power window switch in the one-touch opening direction. After the door window is completely opened, continue holding the switch for an additional 1 second or more.
    5. Release the power window switch for a moment, resume pushing the switch in the one-touch opening direction, and hold it there for approximately 4 seconds or more.
    6. Pull and hold the power window switch in the one-touch closing direction again. After the door window is completely closed, continue holding the switch for a further 1 second or more.

    If you release the switch while the window is moving, start again from the beginning. If the window reverses and cannot be fully closed or opened, have the vehicle inspected by your Toyota dealer.

    Door lock linked window operation

    • Vehicles without a smart key system: The power windows can be opened and closed using the key.*
      Vehicles with a smart key system: The power windows can be opened and closed using the mechanical key.*
    • The power windows can be opened using the wireless remote control.*

    *: These settings must be customized at your Toyota dealer.

    Alarm (if equipped)

    The alarm may be triggered if the alarm is set and a power window is closed using the door lock linked power window operation function.

    Power windows open warning buzzer

    A buzzer sounds and a message is shown on the multi-information display in the instrument cluster when the engine switch is turned off and the driver’s door is opened with the power windows open.

    WARNING

    Observe the following precautions. Failure to do so may result in death or serious injury.

    Closing the windows

    • The driver is responsible for all the power window operations, including the operation for the passengers. In order to prevent accidental operation, especially by a child, do not let a child operate the power windows. It is possible for children and other passengers to have body parts caught in the power window. Also, when riding with a child, it is recommended to use the window lock switch.
    • Check to make sure that all passengers do not have any part of their body in a position where it could be caught when a window is being operated.
    • When using the wireless remote control, key or mechanical key and operating the power windows, operate the power window after checking to make sure that there is no possibility of any passenger having any of their body parts caught in the window. Also do not let a child operate window by the wireless remote control, key or mechanical key. It is possible for children and other passengers to get caught in the power window.
    • When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that may possibly lead to an accident.

    Jam protection function

    • Never use any part of your body to intentionally activate the jam protection function.
    • The jam protection function may not work if something gets jammed just before the window is fully closed. Be careful not to get any part of your body jammed in the window.

    Catch protection function

    • Never use any part of your body or clothing to intentionally activate the catch protection function.
    • The catch protection function may not work if something gets caught just before the window is fully opened. Be careful not to get any part of your body or clothing caught in the window.

    Moon roof

    Use the overhead switches to open and close the moon roof and tilt it up and down.

    Opening and closing

    1. Opens the moon roof*
      The moon roof stops slightly before the fully open position to reduce wind noise.
      Press the switch again to fully open the moon roof.
    2. Closes the moon roof*

    *: Lightly press either side of the moon roof switch to stop the moon roof partway.

    Tilting up and down

    Scroll down for more info ↓
    Scroll down for more info ↓
    1. Tilts the moon roof up*
    2. Tilts the moon roof down*

    *: Lightly press either side of the moon roof switch to stop the moon roof partway.

    The moon roof can be operated when

    • Vehicles without a smart key system
      The engine switch is in the “ON” position
    • Vehicles with a smart key system
      The engine switch is in IGNITION ON mode.

    Operating the moon roof after turning the engine off

    • Vehicles without a smart key system
      The moon roof can be operated for approximately 45 seconds after the engine switch is turned to the “ACC” or “LOCK” position. It cannot, however, be operated once either front door is opened.
    • Vehicles with a smart key system
      The moon roof can be operated for approximately 45 seconds after the engine switch is turned to ACCESSORY mode or turned off. It cannot, however, be operated once either front door is opened.

    Jam protection function

    If an object is detected between the moon roof and the frame while the moon roof is closing or tilting down, travel is stopped and the moon roof opens slightly.

    Sunshade

    The sunshade can be opened and closed manually. However, the sunshade will open automatically when the moon roof is opened.

    WARNING

    Opening the moon roof

    • Do not allow any passengers to put their hands or heads outside the vehicle while it is moving.
    • Do not sit on top of the moon roof.

    Closing the moon roof

    • The driver is responsible for moon roof opening and closing operations.
      In order to prevent accidental operation, especially by a child, do not let a child operate the moon roof. It is possible for children and other passengers to have body parts caught in the moon roof.
    • Check to make sure that all passengers do not have any part of their body in a position where it could be caught when the moon roof is being operated.
    • When using the wireless remote control, key or mechanical key and operating the moon roof, operate the moon roof after checking to make sure that there is no possibility of any passenger having any of their body parts caught in the moon roof. Also, do not let a child operate moon roof by the wireless remote control, key or mechanical key. It is possible for children and other passengers to get caught in the moon roof.
    • When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that may possibly lead to an accident.

    Jam protection function

    • Never use any part of your body to intentionally activate the jam protection
      function.
    • The jam protection function may not work if something gets caught just before the moon roof is fully closed. Also, the jam protection function is not designed to operate while the switch is being pressed. Take care so that your fingers, etc. do not get caught.

    Panoramic moon roof

    Use the overhead switches to operate the panoramic moon roof and electronic sunshade.

    Opening and closing the electronic sunshade

    1. Opens the electronic sunshade
      Slide and hold the switch backward. The electronic sunshade will fully open automati-
      cally.*
    2. Closes the electronic sunshade
      Slide and hold the switch forward. The electronic sunshade will fully close automatically.*

    *: Quickly slide and release the electronic sunshade partway switch in either direction to stop the

    Tilting the panoramic moon roof up and down

    • Tilts the panoramic moon roof up (press)*
      When the panoramic moon roof is tilted up, the electronic sunshade will open to the half-open position of the roof.
    • *: Lightly press the switch again to stop the panoramic moon roof partway.
    • Tilts the panoramic moon roof down (press and hold)
      The panoramic moon roof can be tilted down only when it is in the tilt-up position.

    Opening and closing the panoramic moon roof

    Opens the panoramic moon roof*
    Slide and hold the switch backward. The panoramic moon roof and electronic sunshade will open automatically.
    The panoramic moon roof can be opened from the tilt-up position.

    *: Quickly slide and release the switch in either direction to stop the panoramic moon roof partway.

    Closes the panoramic moon roof
    Slide and hold the switch forward. The panoramic moon roof will fully close automatically.

    The panoramic moon roof can be operated when

    The engine switch is in IGNITION ON mode.

    Operating the panoramic moon roof after turning the engine off

    The panoramic moon roof and electronic sunshade can be operated for approximately 45 seconds after the engine switch is turned to ACCESSORY mode or turned off. They cannot, however, be operated once either front door is opened.

    Jam protection function

    If an object is detected between the panoramic moon roof and the frame in the following situations, travel is stopped and the panoramic moon roof opens slightly:

    • The panoramic moon roof is closing or tilting down.
    • The electronic sunshade is closing.

    WARNING

    Observe the following precautions.
    Failing to do so may cause death or serious injury.

    Opening and closing the electronic sunshade

    • Check to make sure that all passengers do not have any part of their body in a position where it could be caught when the electronic sunshade is being operated.
    • Do not let a child operate the electronic sunshade. Closing the electronic sunshade on someone can cause death or serious injury.

    Opening and closing the panoramic moon roof

    • The driver is responsible for panoramic moon roof opening and closing operations.
      In order to prevent accidental operation, especially by a child, do not let a child operate the panoramic moon roof. It is possible for children and other passengers to have body parts caught in the panoramic moon roof.
    • Check to make sure that all passengers do not have any part of their body in a position where it could be caught when the panoramic moon roof is being operated.
    • When using the wireless remote control or mechanical key and operating the panoramic moon roof, operate the panoramic moon roof after checking to make sure that there is no possibility of any passenger having any of their body parts caught in the panoramic moon roof. Also, do not let a child operate panoramic moon roof by the wireless remote control or mechanical key. It is possible for children and other passengers to get caught in the panoramic moon roof.
    • When exiting the vehicle, turn the engine switch off, carry the key and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that may possibly lead to an accident.

    Jam protection function

    • Never use any part of your body to intentionally activate the jam protection function.
    • The jam protection function may not work if something gets caught just before the panoramic moon roof or electronic sunshade is fully closed. Also, the jam protection function is not designed to operate while the switch is being pressed. Take care so that your fingers, etc. do not get caught.

    To prevent burns or injuries

    Do not touch the area between the underside of the panoramic moon roof and the electronic sunshade. Your hand may get caught and you could injure yourself. Also, if the vehicle is left in direct sunlight for a long time, the underside of the panoramic moon roof could become very hot and could cause burns.
